Angle Lock Precision Machine Vice
Features:
Made of HT250
30° angle lock reduces jaw moving up
Can be lined up for long workpiece.
Thrust bearing reduces friction and increases clamping force
Parallelism 0.01mm/100mm
Squareness 0.02mm
Please choose the model, then ask for quotation or add to cart.
Technical Parameter

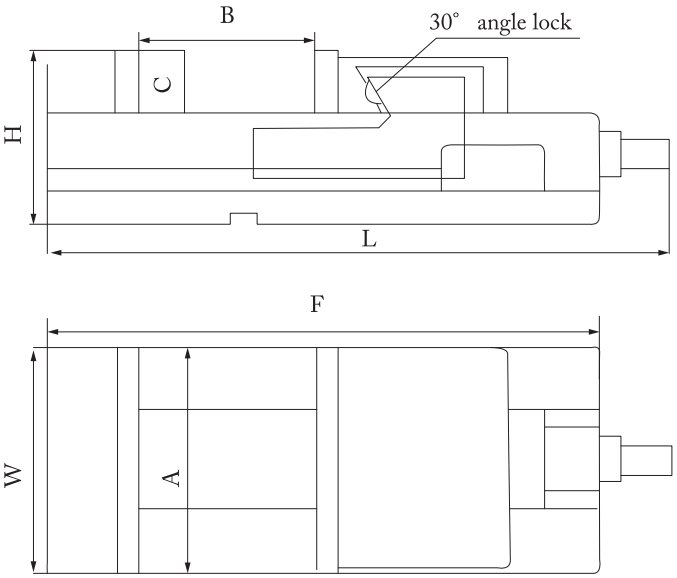

Order Code 3140- | Width of Iaw A (mm) | Max Opening B (mm) | Height of Jaw C (mm) | Length of Vice L (mm) | Width of Vice W (mm) | Height of Vice H (mm) | Length F | G.W/N.W. |
4003 | 80 | 75 | 24 | 239 | 81 | 74 | 208 | 8/7 |
4004 | 100 | 100 | 32 | 300 | 101 | 92 | 265 | 13/12 |
4005 | 125 | 125 | 40 | 360 | 126 | 105 | 300 | 18/17 |
4006 | 160 | 185 | 45 | 440 | 161 | 122 | 390 | 20/29 |
4008 | 200 | 210 | 50 | 505 | 201 | 135 | 458 | 49/47 |
4010 | 250 | 300 | 70 | 630 | 251 | 168 | 570 | 71/69 |
