Angle Lock Machine Vice
Features:
Made of ductile cast iron
Parallelism 0.01mm/100mm
Squareness 0.02mm
30° angle lock prevents jaws from moving up
Can be lined up for long workpiece
Hardness of guide above HRC40
Please choose the model, then ask for quotation or add to cart.

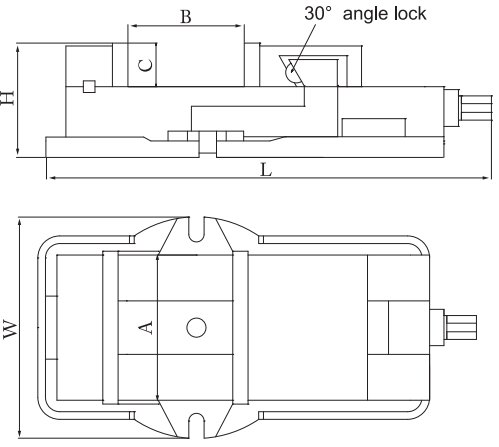

Technical Parameter
Order Code 3140- | Width of Jaw A | Max Opening B (mm) | Height of Jaw C (mm) | Length of Vice L (mm) | Width of Vice W (mm) | Height of Vice H | Packing (cm) | G.W/N.W (kg) |
5104 | 152 | 230 | 45 | 496 | 234 | 118 | 52X32X21 | 34/33 |
