Angle Lock Precision Machine Vice
Features:
Made of HT250
30° angle lock reduces jaw moving up
With detachable swivel base
Parallelism 0.01mm/100mm
Squareness 0.02mm
Please choose the model, then ask for quotation or add to cart.
Technical Parameter

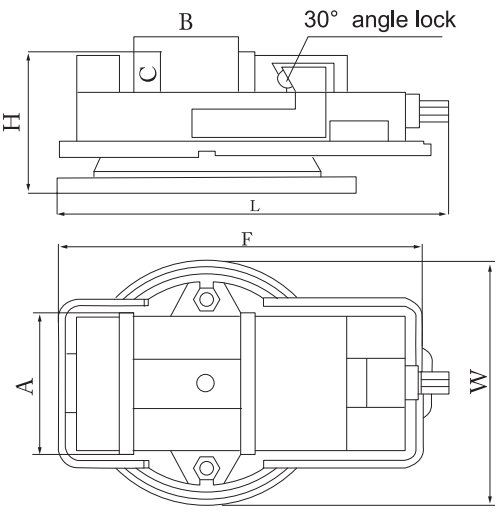

Order Code 3140- | Width of Jaw A (mm) | Max Opening B (mm) | Height of Jaw C (mm) | Length of Vice L | Width of Vice W | Height of Vice H | Length F (mm) | G.W/N.W. |
0402L | 80 | 90 | 24 | 265 | 115 | 95 | 240 | 10/9 |
0404L | 100 | 130 | 32 | 335 | 159 | 120 | 310 | 19/18 |
0406L | 125 | 135 | 40 | 370 | 172 | 134 | 340 | 23/22 |
0408 | 160 | 150 | 45 | 435 | 220 | 153 | 408 | 39/38 |
0408L | 160 | 190 | 45 | 470 | 225 | 153 | 428 | 40/39 |
0410L | 200 | 235 | 50 | 552 | 255 | 178 | 510 | 60/58 |
