Drilling Machine Vice
Features:
Jaws with prism to clamp workpiece
Jaws with horizontal and vertical V-slots to clamp bars
Parallelism 0.01/100mm
Squareness 0.02mm
Hardness of jaws HRC45
Please choose the model, then ask for quotation or add to cart.

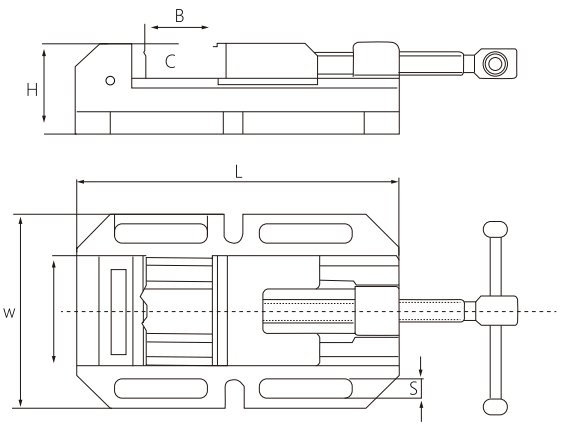

Technical Parameter
Order Code 3132- | Width of Jaw A (mm) | Max Opening B (mm) | Height of Jaw C | Length of Vice L (mm) | Width of Vice W (mm) | Height of Vice H (mm) | Packing (cm) | G.W/N.W. |
1702 | 60 | 70 | 25 | 170 | 115 | 55 | 200x120x60 | 3/2.5 |
1704 | 100 | 130 | 32 | 288 | 178 | 82 | 340x180x90 | 12/11 |
1705 | 120 | 160 | 40 | 340 | 197 | 90 | 400x200x90 | 17/16 |
1706 | 150 | 200 | 40 | 400 | 227 | 90 | 460x230x90 | 24/23 |
