YMR Series Self-Centering Vice Jaw Type Ⅱ

Features:

Adaptable to rotary tables.
Manually operated two-way clamping.
A variety of available jaws.
Reversible jaws to extend clamping range.
Multiple clamping depths.
Positioning repeatability to 0.015mm.
All steel construction.
Adjustable center position.

Please choose the model, then ask for quotation or add to cart.

Inquiry Now
Add inquiry cart

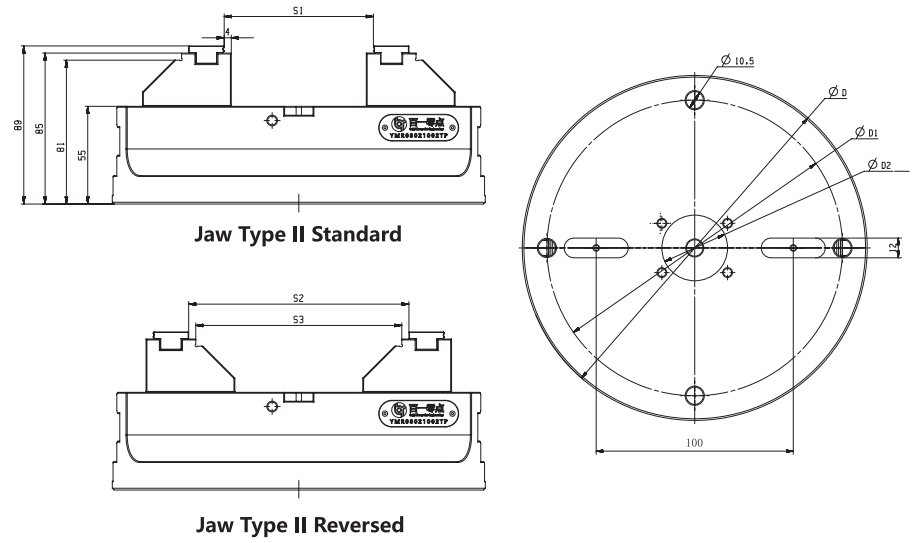

Technical Parameter

(mm)

Order Code	Body Dia. (φD)	Body Width	Body Height	Overall Height	Jaw Width	S1 Max	S2 Max	S3 Max	D1
Order Code	Body Dia. (φD)	(W)	Body Height	Overall Height	Jaw Width	S1 Max	S2 Max	S3 Max	D1
YMR08021002	210	80	55	94	80	108	152	144	180
YMR10021002	210	100	55	94	100	108	152	144	180
YMR12521002	210	125	55	94	125	108	152	144	180
YMR08025502	255	80	55	94	80	158	202	194	230
YMR10025502	255	100	55	94	100	158	202	194	230
YMR12525502	255	125	55	94	125	158	202	194	230
