YME Series Self-Centering Vice Jaw Type Ⅰ
Features:
Specially designed aluminium and other non-ferrous metals
Sealed body for easy chip evacuation.
Pre-threaded holes for pull studs.
Reversiblejaws to extend clamping range
Multiple clamping depths.
Positioning repeatability 0.015mm.
All steel construction.
Adjustable center position.
Please choose the model, then ask for quotation or add to cart.

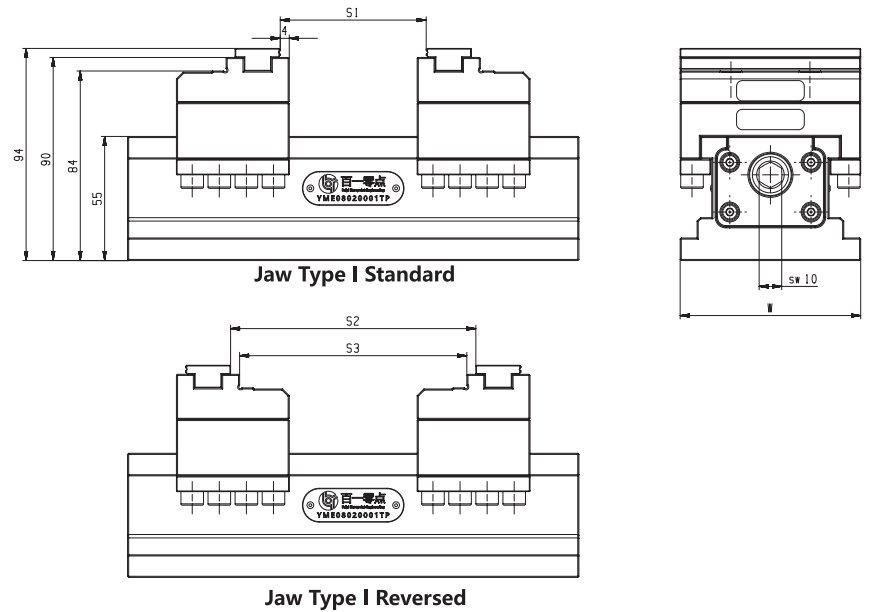

Technical Parameter
(mm)
| Order Code | Body Length | Body Width | Body Height | Overall Height | Jaw Width | S1 Max | S2 Max | S3 Max |
YME08020001 | 200 | 80 | 55 | 99 | 80 | 108 | 152 | 144 |
YME10020001 | 200 | 100 | 55 | 99 | 100 | 108 | 152 | 144 |
YME12520001 | 200 | 125 | 55 | 99 | 125 | 108 | 152 | 144 |
YME08025001 | 250 | 80 | 55 | 99 | 80 | 158 | 202 | 194 |
YME10025001 | 250 | 100 | 55 | 99 | 100 | 158 | 202 | 194 |
YME12525001 | 250 | 125 | 55 | 99 | 125 | 158 | 202 | 194 |
