YMZ Series Self-Centering Vice Jaw Type Ⅰ
Features:
Screw holes for quick change pull studs embedded. Optimized design for quick change system
Two-way centering clamping, manual operation, no power source required
A variety of jaws available
Jaws reversible to extend clamping range
Multiple clamping depths
Repeat positioning accuracy 0.015mm
All Steel
Center Adjustable
Please choose the model, then ask for quotation or add to cart.

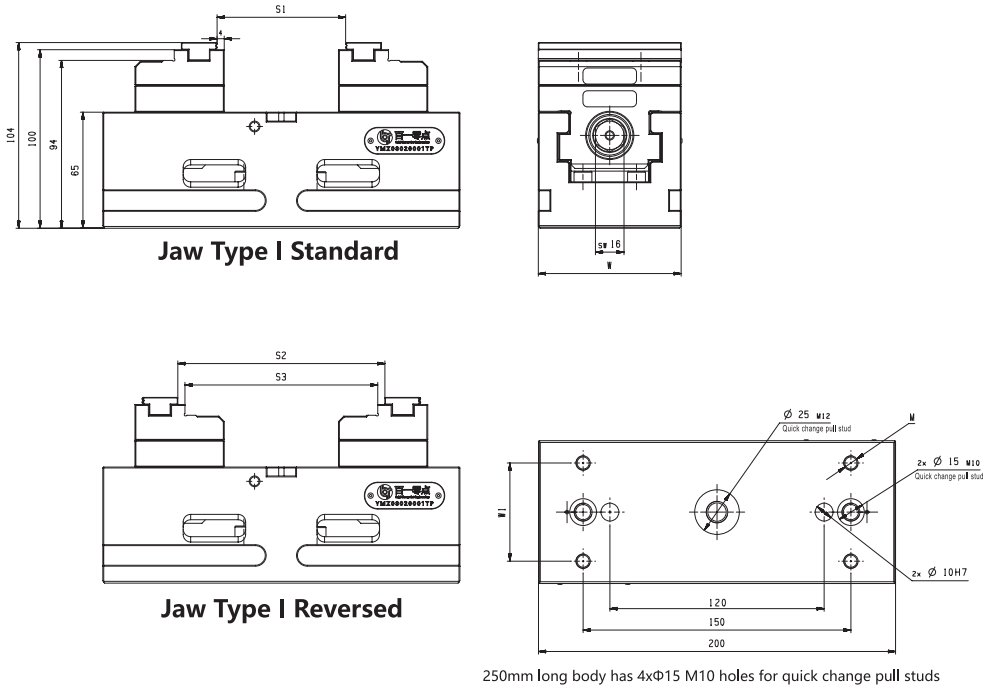

Technical Parameter
(mm)
| Order Code | Body Length | Body Width (W) | Body Height | Overall Height | Jaw Width | S1 Max | S2 Max | S3 Max | W1 |
YMZ08020001 | 200 | 80 | 65 | 104 | 80 | 108 | 152 | 144 | 55 |
YMZ10020001 | 200 | 100 | 65 | 104 | 100 | 108 | 152 | 144 | 65 |
YMZ12520001 | 200 | 125 | 65 | 104 | 125 | 108 | 152 | 144 | 90 |
YMZ08025001 | 250 | 80 | 65 | 104 | 80 | 158 | 202 | 194 | 55 |
YMZ10025001 | 250 | 100 | 65 | 104 | 100 | 158 | 202 | 194 | 65 |
YMZ12525001 | 250 | 125 | 65 | 104 | 125 | 158 | 202 | 194 | 90 |
