Compound Table
Please choose the model, then ask for quotation or add to cart.

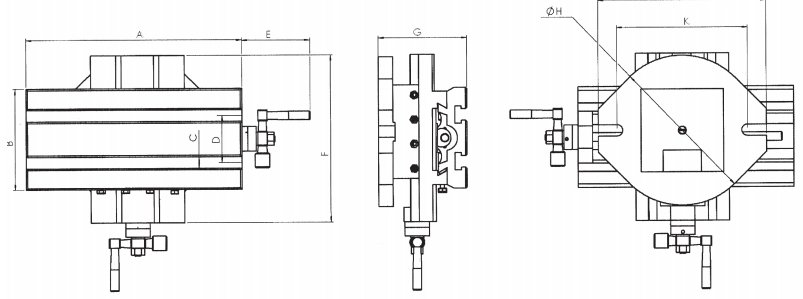

Technical Parameter
Order Code 3002- | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) |
| K (mm) | X Travel | Y Travel (mm) | Qty/Ctn | Packing | NW/GW |
6401 | 300 | 140 | 16 | 65 | 300 | 232 | 85 | 208 | 234 | 182 | 180 | 1 | 38x30x14 | 13/14 | |
6402 | 300 | 140 | 16 | 65 | 300 | 232 | 123 | 208 | 234 | 182 | 180 | 100 | 1 | 38x30x14 | 17/18 |
6403 | 300 | 140 | 16 | 65 | 300 | 232 | 123 | 208 | 234 | 182 | 180 | 100 | 1 | 39x30x16 | 17/18 |
