Double Opening Machine Vice
Features:
Made of HT250
Parallelism 0.01/100mm
Squareness 0.02mm
30° angle lock prevents jaw from moving up
Can be lined up for long workpiece
Different size workpieces can be clamped simultaneously on one vice
Remove the center rack, the vice can be used as a self centering vice.
Please choose the model, then ask for quotation or add to cart.

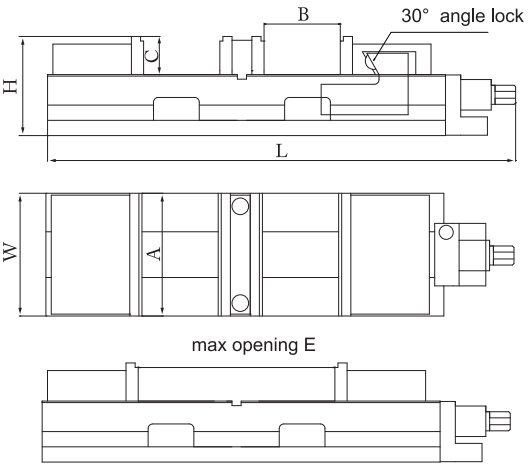

Technical Parameter
Order Code 3140- | Width of Jaw A (mm) | Max Opening B (mm) | Height of Jaw C | Max Opening E (mm) | Length of Vice L (mm) | Width of Vice W (mm) | Height of Vice H (mm) | Packing | G.W/N.W. |
5004 | 100 | 76 | 37 | 207 | 460 | 101 | 95 | 51×16×15 | 18/17 |
5006 | 160 | 100 | 50 | 256 | 612 | 160 | 130 | 69×21×20 | 45/44 |
