Drilling Machine Vice
Features:
Jaws with prism to clamp workpiece
Jaws with horizontal & vertical V-slots to clamp bar
3 direction use
Parallelism 0.015mm
Squareness 0.03mm
Please choose the model, then ask for quotation or add to cart.
Technical Parameter

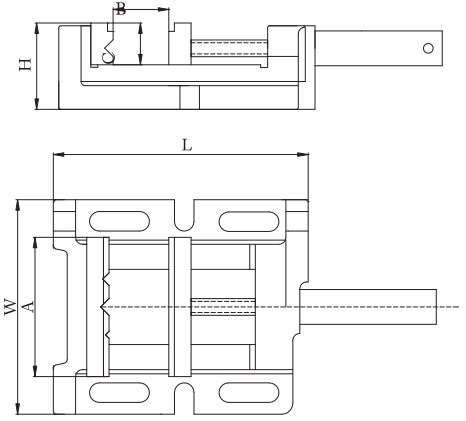

Order Code 3132- | Width of Jaw A | Max Opening B (mm) | Height of Jaw C (mm) | Length of Vice L | Width of Vice W (mm) | Height of Vice H | Packing | G.W/N.W (kg) |
1504 | 100 | 92 | 30 | 189 | 159 | 65 | 28x16x7 | 5/4.9 |
