Drilling Machine Vice
Features:
Parallelism 0.01mm/100mm
Squareness 0.02mm
Please choose the model, then ask for quotation or add to cart.
Technical Parameter

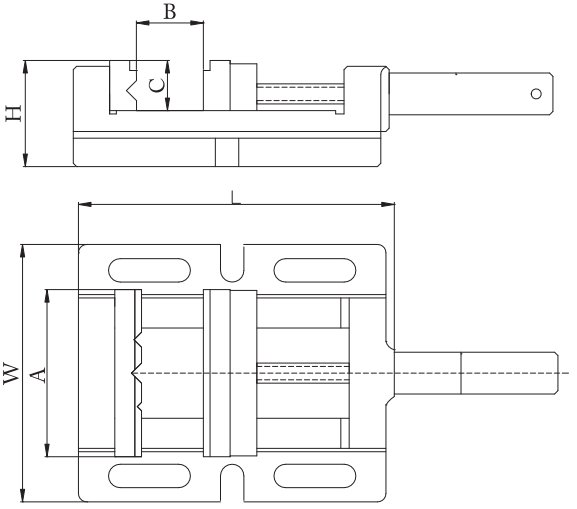

Order Code 3132- | Width of Jaw (mm) | Max Opening B (mm) | Height of Jaw C (mm) | Length of Vice L (mm) | Width of Vice W (mm) | Height of Vice (mm) | Packing | G.W/N.W (kg) |
1403 | 80 | 70 | 30 | 155 | 142 | 59 | 24x15x7 | 3/2.8 |
1404 | 100 | 92 | 30 | 176 | 156 | 65 | 28x16x7 | 4/3.8 |
1405 | 120 | 110 | 37 | 225 | 180 | 65 | 35x18x7 | 6.5/6 |
1406 | 150 | 125 | 37 | 244 | 199 | 66 | 38x20x6 | 8/7.8 |
