Precision Cross Slide Table
Please choose the model, then ask for quotation or add to cart.
Technical Parameter

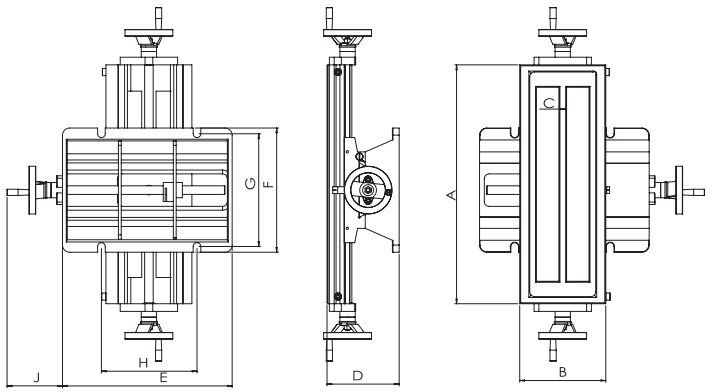

Order Code 3002- | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) |
(mm) | X Travel | y Trave | Qty/Ctn | Packing | NW/GW (kg) |
6421 | 400 | 120 | 10 | 145 | 282 | 222 | 200 | 160 | 110 | 220 | 160 | 1 | 49X38X20 | 23/27 |
6422 | 500 | 180 | 12 | 151 | 355 | 260 | 235 | 200 | 116 | 280 | 175 | 65X43.5X22 | 35/40 | |
6423 | 700 | 180 | 12 | 151 | 355 | 260 | 235 | 200 | 116 | 480 | 175 | 1 | 85X43X22 | 45/50 |
