Parallelism: 0.005/100mm
Squareness: 0.005mm
Made of high quality alloy steel
Hardness HRC58-62
Parallelism 0.005mm/100mm
Squareness 0.005mm
Widely used in CNC and other precision machine tools
Can be lined up for long workpiece

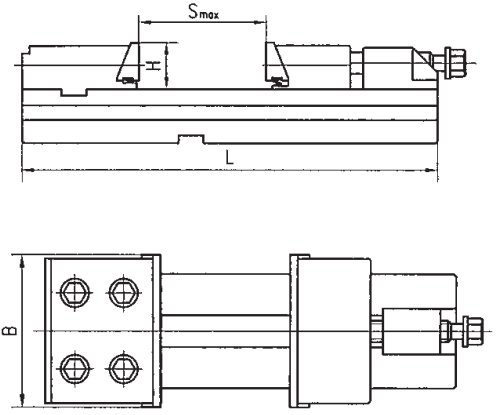

Order Code 3040- | Width of Jaw B (mm) | Height of Jaw H (mm) | Max Opening S (mm) | Length of Vice mm) | Clamping Force |
1240 | 100 | 30 | 100 | 270 | 3000 |
1250 | 125 | 40 | 150 | 345 | 3000 |
1260 | 150 | 50 | 200 | 420 | 5000 |
1261 | 150 | 50 | 300 | 520 | 5000 |
1270 | 175 | 60 | 200 | 455 | 6000 |
1271 | 175 | 60 | 300 | 555 | 6000 |
1272 | 175 | 60 | 400 | 655 | 6000 |
1273 | 175 | 60 | 500 | 755 | 6000 |
1274 | 175 | 60 | 600 | 855 | 6000 |
1280 | 200 | 65 | 200 | 495 | 10000 |
1281 | 200 | 65 | 300 | 595 | 10000 |
1282 | 200 | 65 | 400 | 695 | 10000 |
1283 | 200 | 65 | 500 | 795 | 10000 |
1284 | 200 | 65 | 600 | 895 | 10000 |
1320 | 300 | 80 | 200 | 535 | 12000 |
1321 | 300 | 80 | 300 | 635 | 12000 |
1322 | 300 | 80 | 400 | 735 | 12000 |
1323 | 300 | 80 | 500 | 835 | 12000 |
1324 | 300 | 80 | 600 | 935 | 12000 |
1325 | 300 | 80 | 700 | 1035 | 12000 |
1326 | 300 | 80 | 800 | 1135 | 12000 |
MAIN ATTACHMENT OF MODULAR VICES
Box wrench 1pc
T-wrench 1pc
Clamping board 4pcs
Work stop with main bolt 1 set(4pcs)
Key nut 1 set(2pcs)
Swivel base ------Optional
