QB Machine Vice
Features:
Made of HT250
Parallelism 0.01/100mm
Squareness 0.03mm
With detachable swivel base
Please choose the model, then ask for quotation or add to cart.
Technical Parameter

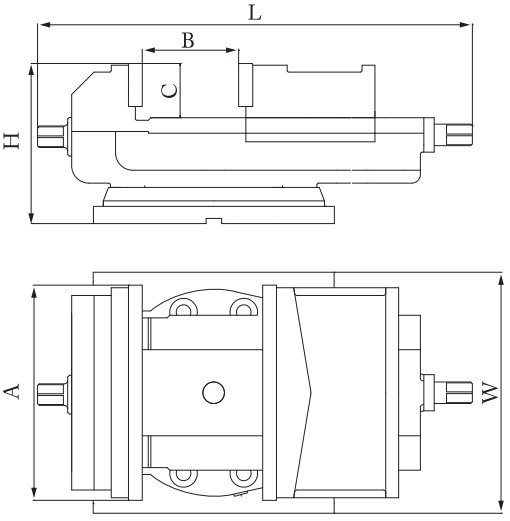

Order Code 3141- | Width of Jaw A (mm) | Max Opening B (mm) | Height of Jaw C (mm) | Length of Vice L (mm) | Width of Vice W (mm) | Height of Vice H (mm) | Packing | G.W/N.W. |
0905 | 136 | 170 | 35 | 370 | 166 | 120 | 45×20×18 | 17/16 |
0906 | 160 | 180 | 52 | 402 | 182 | 142 | 45×20×20 | 27/26 |
0908 | 200 | 230 | 63 | 475 | 223 | 175 | 51×24×22 | 38/37 |
0910 | 250 | 300 | 63 | 612 | 290 | 170 | 61×29×23 | 56/55 |
0912 | 320 | 360 | 80 | 685 | 360 | 195 | 74×36×26 | 82/80 |
0916 | 400 | 480 | 80 | 855 | 420 | 208 | 93×49×29 | 140/130 |
0920 | 500 | 600 | 90 | 980 | 500 | 205 | 100x52x21 | 170/160 |
