QGG Precision Vice
Features:
Made of high quality alloy steel
Hardness HRC58-62
Parallelism 0.005mm/100mm
Squareness 0.005mm
High accuracy is guaranteed no matter the vice is used horizontally, vertically or by side
Widely used in precision measuring, inspection, grinding, EDM and etc.
Please choose the model, then ask for quotation or add to cart.
Technical Parameter

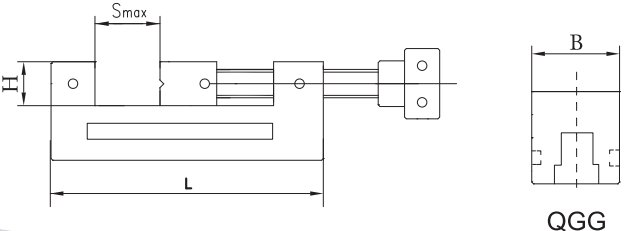

Order Code 3140- | Width of Jaw B | Height of Jaw H | Max Opening S (mm) | Length of Vice L (mm) |
4050 | 50 | 25 | 65 | 155 |
4060 | 60 | 25 | 55 | 110 |
4063 | 63 | 32 | 85 | 190 |
4073 | 73 | 35 | 100 | 210 |
4080 | 80 | 40 | 100 | 220 |
4088 | 88 | 40 | 125 | 250 |
4100 | 100 | 45 | 125 | 260 |
4125 | 125 | 50 | 160 | 300 |
4126 | 125 | 50 | 210 | 350 |
4150 | 150 | 50 | 175 | 315 |
