QH Machine Vice
Features:
Made of HT250
Parallelism 0.01mm/100mm
Squareness 0.03mm
With detachable swivel base
Please choose the model, then ask for quotation or add to cart.
Technical Parameter

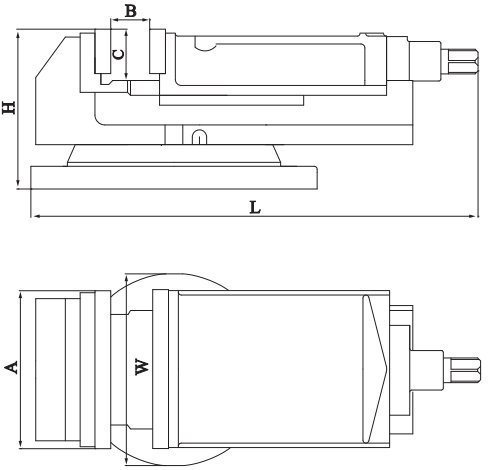

Order Code 3141- | Width of Jaw A (mm) | Max Opening B (mm) | Height of Jaw C (mm) | ength of Vice L | Width of Vice W (mm) | Height of Vice H (mm) | Packing | G.W/N.W. |
0803 | 80 | 63 | 30 | 220 | 115 | 95 | 48×30×13 | 8/7 |
0804 | 100 | 80 | 37 | 260 | 140 | 110 | 57×34×14 | 12/11 |
0805 | 125 | 100 | 40 | 301 | 160 | 120 | 35×18×17 | 18/17 |
0806 | 160 | 125 | 52 | 411 | 222 | 150 | 45×24×22 | 35/34 |
0808 | 200 | 160 | 63 | 461 | 240 | 175 | 51×26×21 | 46/45 |
0810 | 250 | 200 | 63 | 520 | 260 | 180 | 52×32×21 | 70/67 |
