Tilting Machine Vice
Features:
Made of HT250
360° swivel, 60° tilting
Parallelism 0.01mm/100mm
Squareness 0.03mm
Please choose the model, then ask for quotation or add to cart.

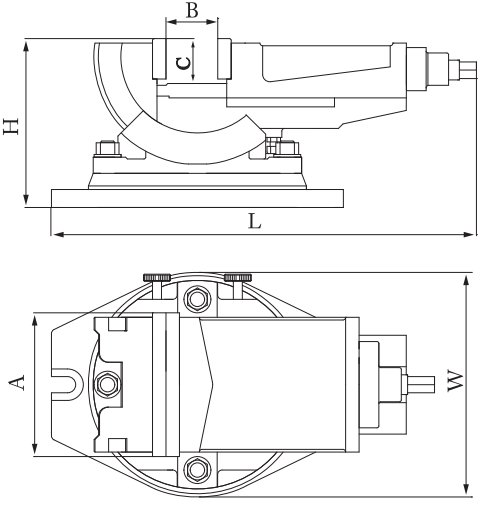

Technical Parameter
Order Code 3141- | Width of Jaw A | Max Opening B | Height of Jaw C (mm) | Length of Vice L | Width of Vice W | Height of Vice H (mm) | Packing | G.W/N.W (kg) |
0704 | 100 | 80 | 43 | 300 | 182 | 155 | 35×21×21 | 20/19 |
0705 | 125 | 100 | 46 | 372 | 230 | 168 | 41×25×22 | 29/28 |
0705L | 125 | 140 | 46 | 418 | 230 | 168 | 46×25×21 | 29/28 |
0706 | 160 | 125 | 50 | 420 | 250 | 186 | 46×27×24 | 39/38 |
0708 | 200 | 160 | 53 | 480 | 290 | 215 | 56×35×26 | 65/62 |
