YMO Series Self-Centering Vice Jaw Type Ⅰ
Features:
Lighter weight than our YMZ series.
Optional adapter plate for quick change system.
A variety of available jaws.
Reversible jaws to extend clamping range.
Multiple clamping depths.
Positioning repeatability to 0.015mm.
All steel construction.
Adjustable center position.
Please choose the model, then ask for quotation or add to cart.

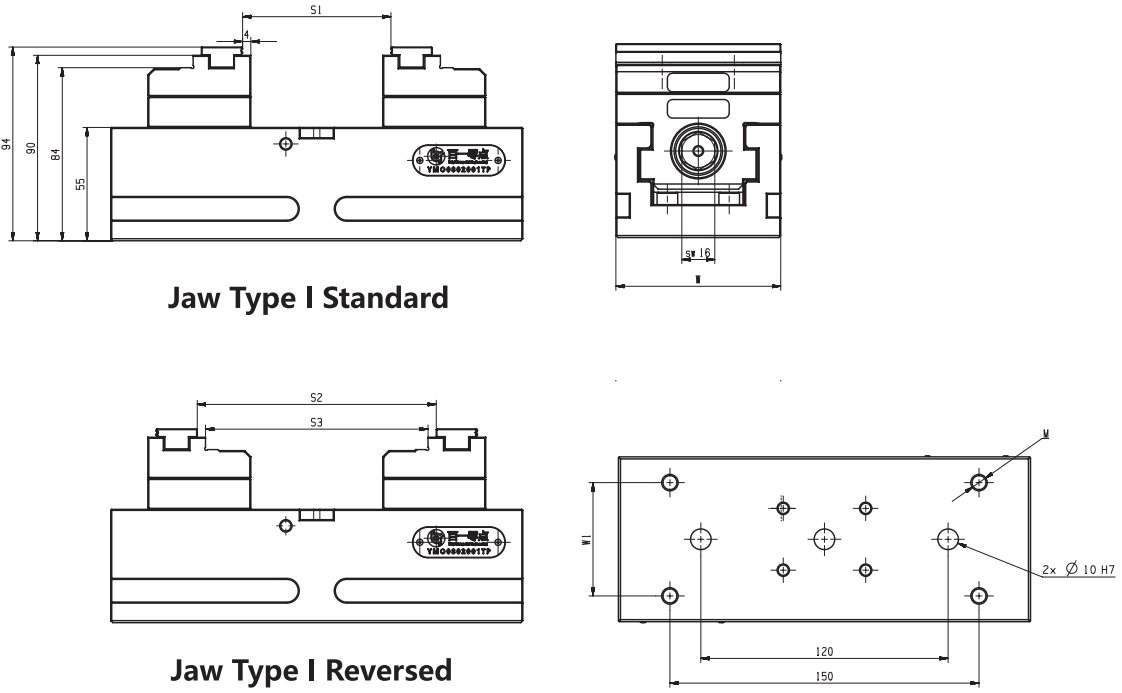

Technical Parameter
(mm)
| Order Code | Body Length | Body Width | Body Height | Overall Heigh | Jaw Width | S1 Max | S2 Max | S3 May | W1 |
YMO08020001 | 200 | 80 | 55 | 94 | 80 | 108 | 152 | 144 | 55 |
YMO10020001 | 200 | 100 | 55 | 94 | 100 | 108 | 152 | 144 | 65 |
YMO12520001 | 200 | 125 | 55 | 94 | 125 | 108 | 152 | 144 | 90 |
YM008025001 | 250 | 80 | 55 | 94 | 80 | 158 | 202 | 194 | 55 |
YMO10025001 | 250 | 100 | 55 | 94 | 100 | 158 | 202 | 194 | 65 |
YM012525001 | 250 | 125 | 55 | 94 | 125 | 158 | 202 | 194 | 90 |
