YMR Series Self-Centering Vice Jaw Type Ⅲ
Features:
Soft top jaws not included as standard
Soft top jaws optional
Adapted to rotary table
A variety of jaws available
Jaws reversible to extend clamping range
Multiple clamping depths
Repeat positioning accuracy 0.015mm
All steel
Center Adjustable
Please choose the model, then ask for quotation or add to cart.

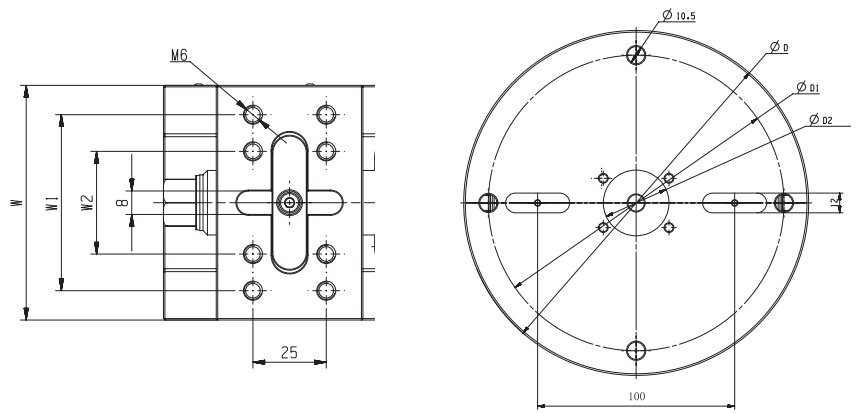

Technical Parameter
(mm)
| Order Code | Body Dia. (φD | Body Width (W) | Body Height | Overall Height | Jaw Width | S1 Max | S2 Max | S3 Max | D1 |
YMR08021003 | 21 | 80 | 55 | 94 | 80 | 108 | 152 | 144 | 180 |
YMR10021003 | 210 | 100 | 55 | 94 | 100 | 108 | 152 | 144 | 180 |
YMR12521003 | 210 | 125 | 55 | 94 | 125 | 108 | 152 | 144 | 180 |
YMR08025503 | 255 | 80 | 55 | 94 | 80 | 158 | 202 | 194 | 230 |
YMR10025503 | 255 | 100 | 55 | 94 | 100 | 158 | 202 | 194 | 230 |
YMR12525503 | 255 | 125 | 55 | 94 | 125 | 158 | 202 | 194 | 230 |
