YMR Series Self-Centering Vice Jaw Type Ⅰ
Features:
Adapted to rotary table
Two-way centering clamping, manual operation, no power source required
A variety of jaws available
Jaws reversible to extend clamping range
Multiple clamping depths
Repeat positioning accuracy 0.015mm
All steel
Center adjustable
Please choose the model, then ask for quotation or add to cart.

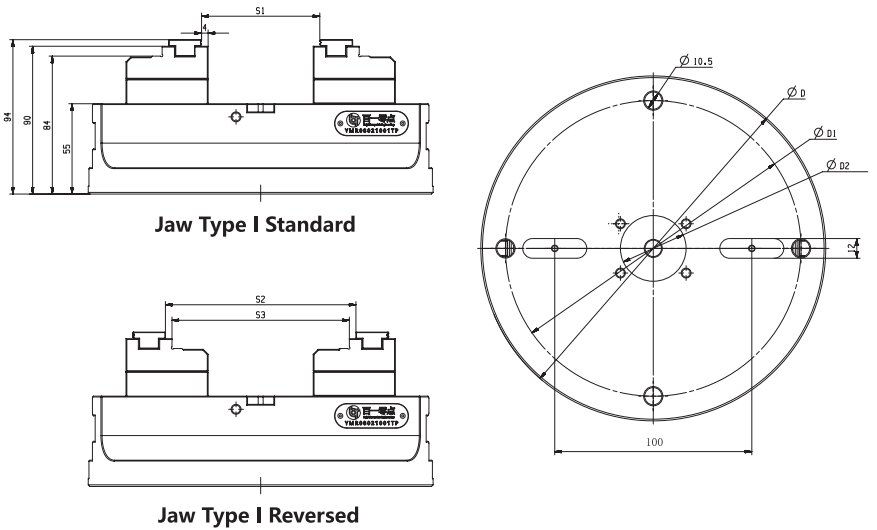

Technical Parameter
(mm)
| Order Code | Body Dia. （φD） | Body Width (W) | Body Height | Overall Heigh | Jaw Width | S1 Max | S2 Max | S3 Max | D1 |
YMR0802100 | 210 | 80 | 55 | 94 | 80 | 108 | 152 | 144 | 180 |
YMR10021001 | 210 | 100 | 55 | 94 | 100 | 108 | 152 | 144 | 180 |
YMR12521001 | 210 | 125 | 55 | 94 | 125 | 108 | 152 | 144 | 180 |
YMR08025501 | 255 | 80 | 55 | 94 | 80 | 158 | 202 | 194 | 230 |
YMR10025501 | 255 | 100 | 55 | 94 | 100 | 158 | 202 | 194 | 230 |
YMR12525501 | 255 | 125 | 55 | 94 | 125 | 158 | 202 | 194 | 230 |
