YMZ Series Self-Centering Vice Jaw Type Ⅲ
Features:
Base of Jaw type lll is the same with Jaw type l.
Top jaws are not included as standard.
Soft top jaws optional
Please choose the model, then ask for quotation or add to cart.

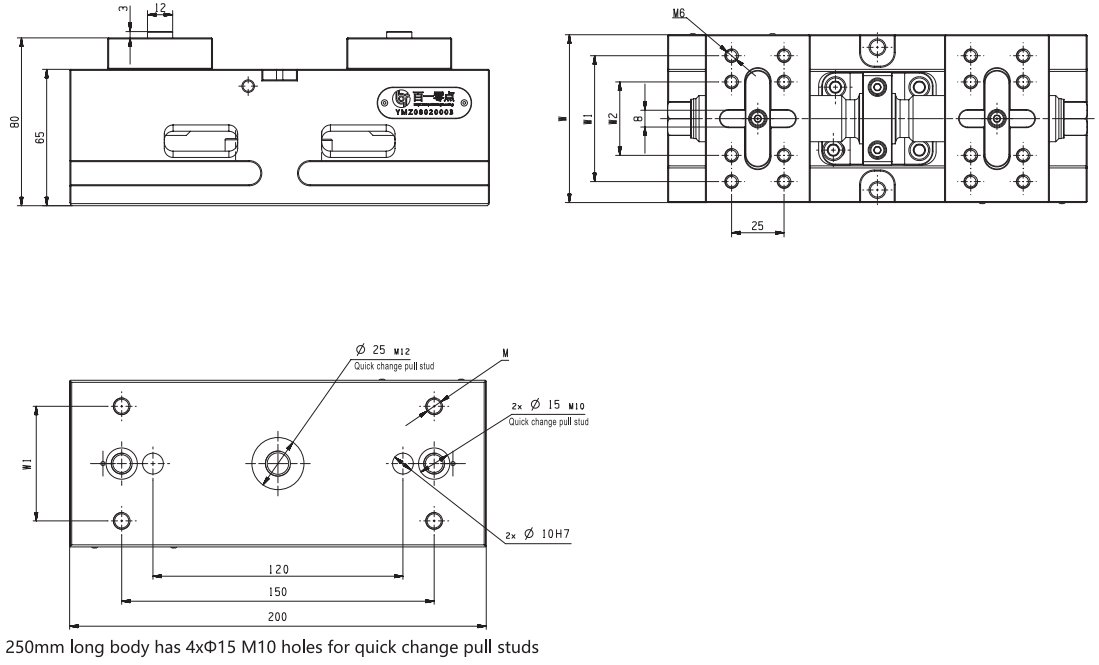

Technical Parameter
(mm)
| Order Code | Body Length | Body Width | Body Height | Overall Height | Jaw Width | W1 | W2 |
YMZ08020003 | 200 | 80 | 65 | 80 | 80 | 55 | 35 |
YMZ10020003 | 200 | 100 | 65 | 80 | 100 | 65 | 35 |
YMZ12520003 | 200 | 125 | 65 | 80 | 125 | 90 | 55 |
YMZ08025003 | 250 | 80 | 65 | 80 | 80 | 55 | 35 |
YMZ10025003 | 250 | 100 | 65 | 80 | 100 | 65 | 35 |
YMZ12525003 | 250 | 125 | 65 | 80 | 125 | 90 | 55 |
