Drilling Machine Vice
Features:
Jaws with prism to clamp workpiece
Jaws with horizontal and vertical V-slots to clamp bar
Parallelism 0.015mm
Squareness 0.03mm
Please choose the model, then ask for quotation or add to cart.
Technical Parameter

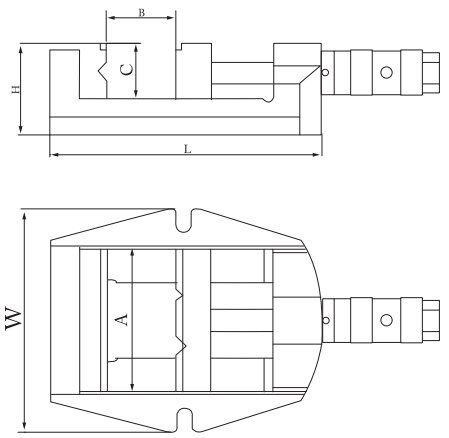

Order Code 3132- | Width of Jaw A | Max Opening B (mm) | Height of Jaw C | Length of Vice L (mm) | Width of Vice W (mm) | Height of Vice H (mm) | Packing | G.W/N.W. |
1605 | 125 | 110 | 50 | 350 | 200 | 82 | 50x11x9 | 11/10 |
